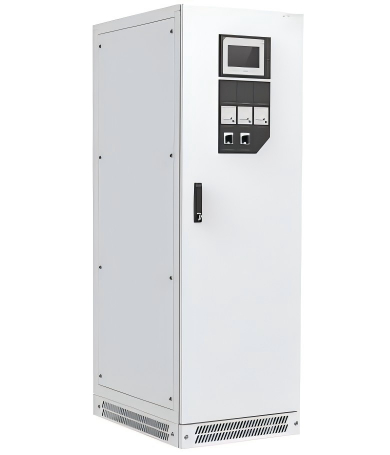

S6000-31G 110/1207/ 220/384Vdc 10-200kVA Industrial UPS

S6000 G industrial UPS product is designed as per full accordance with the latest industry customer needs and years of application experience, relying on mature UPS R&D and manufacturing technologies and based on new-generation industrial standards.

This industrial UPS adopts a fully isolated design with a high protection rating, featuring ultra high reliability,  performance, and intelligent functions. It is an ideal solution for meeting industrial-grade uninterruptible power supply requirements.

This series of products has been widely used in industrial fields with complex and harsh power supply environments, where stringent demand.

These fields include petroleum, chemical industry, natural gas, marine engineering, nuclear power, power plants, metallurgy, rail transit, ships, and offshore wind power.

Industrial-grade Design Standards

Pure and professional industrial-grade design concept, reinforced combined structure, and high IP protection rating, fully adapting to harsh industrial application environments.

Circuit boards are designed based on high pollution levels and combined with high-quality three- proof (anti-moisture, anti-mildew, anti-corrosion) treatment processes to ensure reliable system operation in harsh environments.

Key system components such as transformers, fans, and cabinets can be selected with anti-corrosion models, effectively coping with harsh environments.

Support common battery banks

The system supports multiple machines sharing a single battery bank, which can greatly reduce the investment of battery configuration, reduce the installation space of the system, and reduce

maintenance costs.

The system supports lead-acid, lithium and nickel-cadmium batteries, and has intelligent battery management function.

Dual isolation transformers of input and output

The system input and output are both using built-in isolation transformers to realize electrical

isolation and effectively block various kinds of interference. It has strong anti-impact and anti-short circuit characteristics.

Support energy storage function

It supports the energy storage function of various types of batteries, such as lead-acid, lithium and nickel-cadmium. The reasonable energy storage control algorithm reduces the electricity cost for users, prolongs the service life of batteries and improves the reliability of the system.

Friendly user interface

Full-color touch screen, more intimate user interface, can quickly understand the system status, set parameters and read the running record, friendly man-machine interface

S6000-31G 10-200kVA industrial UPS

S6000-31G 10-200kVA industrial UPS

DC Input

Output

Capacity

10kVA

15kVA

20kVA

25kVA

30kVA

40kVA

50kVA

60kVA

80kVA

100kVA

120kVA

160kVA

200kVA

110VDC

3 Ph ,4W

220VDC

3 Ph ,4W

384VDC

3 Ph ,4W

Main input

Rated Input

3x208V,3x220/230V,3x380/400/415V,3x480V,3x690V (customizable), 50/60Hz (three-phase)

Voltage range

+20 /-25%

Frequency range

50/60Hz +/-10%

Bypass

Rated Input

3x208V,3x220/230V,3x380/400/415V,3x480V (customizable), 50/60Hz (three-phase + neutral)

Voltage range

-40% to +20% (optional)

Frequency range

±2.5%, ±5%, ±10%, ±20% (optional)

Synchronization range

±0.5~±3Hz (optional)

Output

Rated output

3x208V,3x220/230V,3x380/400/415V,3x480V (customizable), 50/60Hz (three-phase + neutral + ground wire)

Power factor

0.9

Stability accuracy

± 1% (balanced load)

Voltage response dynamic

± 5% (0~100% load change)

Voltage distortion

<1% (linear load), <3% (non-linear load)

Frequency accuracy

±0.05%

Parallel number

8

Overload capacity

Inverter operation: 110% for a long time, 125% for 10 minutes, and 150% for 1 minute

Battery

Voltage

110V/220V/384V 2V/6V/12V battery is optional, supporting lead-acid battery, nickel-cadmium battery and lithium battery

Number of batteries

DC110V:8-10 lead-acid battery configuration, supports 86-95 nickel-cadmium battery configuration DC220V:17-19 lead-acid battery configuration, supports 172-182 nickel-cadmium battery configuration DC384V:30-34 lead-acid battery configuration, suppoets 300-326 nickel-cadmium battery configuration

Others

Display

LCD+LED, touch screen

Operation temperature

-10~50℃ (capacity derating above 40℃)

Operating humidity

0~95% no condensation

Degree of protection

Standard IP20 , Optional up to IP43

Noise

60~75dB (A) (depending on product capacity)

Depth(mm)

800

Height(mm)

1800 (standard IP20), height customizable

Width(mm)

The width range of different models is 600mm to 1700mm

RS232/RS485

Support Windows XP/7/8/10/Linux/Mac Support the China electric general/MODBUS/MEGATEC protocol

Optional SNMP card

Support SNMP administrators to remotely monitor and manage through web browsers

■ This product is a high leakage current device, which must be reliably grounded during use. ■ The equipment has high voltage, and non-professionals are strictly prohibited from opening the cabinet to operate. ■ Parameter changes will not be notified separately. ■ The above product dimensions are for reference only, and the actual product shall prevail.
